This is a converter used for converting to DC signal by using input source of a DC signal, RTD sensor Potentiometer. With built-in noise removal filter, transfers correct signal, and precision isolation circuits enable perfect signal transfer not affected by withstand insulation voltage, transfer speed, noise, etc.
INPUT SIGNAL SPECIFICATION

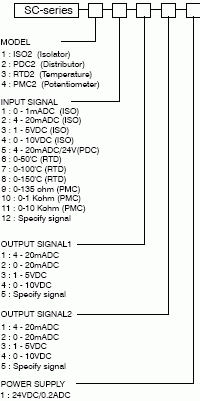

OUTPUT SIGNAL SPECIFICATION Output voltage signal : 12VDC max. Output voltage impedance : 2Kohm min. Output voltage noise : 10mV p-p max. Output current signal : 30mADC max. Output load resistance : 750ohm max. Output current noise(250ohm load) : 10mV p-p. GENERAL SPECIFICATION'S Operating ambient temperature : 0 - 50'C. Non operating ambient temperature : -20 ~ 80'C. Temperature coefficient : 0.02%/'C Operating ambient humidity : 90% RH max.(non condensing) Insulation resistance : greater than 100Mohm with 500VDC. Dielectric strength : 1500VAC @ 1minute (input to out1 to out2 to power). Adjustment range : 20% (zero & span) min. Conversion accuracy : 0.2% max. Response time : 0 - 90%(0.5sec). OUTPUT SIGNAL1 1 : 4 - 20mADC 2 : 0 - 20mADC 3 : 1 - 5VDC 4 : 0 - 10VDC 5 : Specify signal Slim ty pe SIGNAL ISOLATION CONVERTER (2output) 1 : 0 - 1mADC (ISO) 2 : 4 - 20mADC (ISO) 3 : 1 - 5VDC (ISO) 4 : 0 - 10VDC (ISO) 5 : 4 - 20mADC/24V(PDC) 6 : 0-50'C (RTD) 7 : 0-100'C (RTD) 8 : 0-150'C (RTD) 9 : 0-135 ohm (PMC) 10 : 0-1 Kohm (PMC) 11 : 0-10 Kohm (PMC) 12 : Specify signal SC-ISO2 Input voltage signal : -300 ~ 300VDC Input voltage impedance : 1Mohm min. Input current signal : 30mADC max. Input current load resistance : 100ohm max.(at 20mA) 1 : ISO2 (Isolator) 2 : PDC2 (Distributor) 3 : RTD2 (Temperature) 4 : PMC2 (Potentiometer) POWER SUPPLY 1 : 24VDC/0.2ADC 1 : 4 - 20mADC 2 : 0 - 20mADC 3 : 1 - 5VDC 4 : 0 - 10VDC 5 : Specify signal SC-PDC2 Input current signal : 30mADC max. Input current load resistance : 100ohm max.(at 20mA) External power source : DC22~26V/30mA Max. SC-RTD2 Input type : 2wire or 3wire Input signal : pt50,100,1000 ohm or Ni,cu. Input range : -200 ~ 600 'C EXT current : 1.5mA/5VDC> SC-PMC2 Input type : 2wire or 3wire Input signal : potentiometer Input range : 100 ohm ~ 2 Mohm. EXT power : 5VDC FEATURES Small size(mm) : 75(H), 22.5(W), 100(D)-at on DIN rail. Wiring : Terminal wiring. Case & color : gray Polyamide UL 94.V2. Weight : about 100g. POWER SUPPLY SPECIFICATION Power source : DC voltage. Power range : DC24V/200mA max.
|
