RTD temp converter(1ch) DC/AC power
This is a converter used for converting to DC signal by using input source of RTD temperature sensor. With built-in noise removal filter, transfers correct signal, and precision isolation circuits enable perfect signal transfer not affected by withstand insulation voltage, transfer speed, noise, etc.

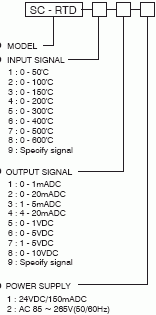

FEATURES Small size(mm) : 75(H), 22.5(W), 100(D). Isolation : input to output to power supply. Power supply : AC or DC supply. Wiring : terminal wiring. Case & color : gray Polyamide UL 94. V2. Weight : about 100g SC - RTD INPUT SIGNAL SPECIFICATION OUTPUT SIGNAL SPECIFICATION Output voltage signal : 12VDC max. Output voltage impedance : 2Kohm min. Output voltage noise : 10mV p-p max. Output current signal : 30mADC max. Output load resistance : 750ohm max. Output current noise(250ohm load) : 10mV p-p. GENERAL SPECIFICATION'S Operating ambient temperature : 0 - 50'C. Non operating ambient temperature : -20 ~ 80'C. Temperature coefficient : 0.02%/'C Operating ambient humidity : 90% RH max.(non condensing) Insulation resistance : greater than 100Mohm with 500VDC. Dielectric strength : 1500VAC @ 1minute (input to output to power). Adjustment range : 20% (zero & span) min. Conversion accuracy : 0.2% max. Response time : 0 - 90%(0.5sec). OUTPUT IMPEDANCE OUTPUT LOAD - R 0 - 1VDC 0 - 5VDC 1 - 5VDC 0-10VDC 0 - 1mA 0 - 20mA 1 - 5mA 4 - 20mA > 1Kohm > 2Kohm > 2Kohm > 4Kohm < 15Kohm < 750ohm < 3Kohm < 750ohm OUTPUT SIGNAL 1 : 0 - 1mADC 2 : 0 - 20mADC 3 : 1 - 5mADC 4 : 4 - 20mADC 5 : 0 - 1VDC 6 : 0 - 5VDC 7 : 1 - 5VDC 8 : 0 - 10VDC 9 : Specify signal Slim type RTD TEMPERATURE CONVERTER 1 : 0 - 50'C 2 : 0 - 100'C 3 : 0 - 150'C 4 : 0 - 200'C 5 : 0 - 300'C 6 : 0 - 400'C 7 : 0 - 500'C 8 : 0 - 600'C 9 : Specify signal Input type : 3wire type. Input signal : Pt50ohm or Pt100ohm Input range : -200 ~ 600'C EXT current : 1.5mA/5VDC This is a converter used for converting to DC signal by using input source of RTD temperature sensor. With built-in noise removal filter, transfers correct signal, and precision isolation circuits enable perfect signal transfer not affected by withstand insulation voltage, transfer speed, noise, etc.
|
