首页>> 传感器类>> 压力变送器>> P617 P619 P647 P649腐蚀环境压力变送器WISE SENSOR

P617
商品名称:P617 P619 P647 P649腐蚀环境压力变送器WISE SENSOR
商品品牌 :WISE SENSOR 订购电话 :0760-88886370 88886371 88886372 88886373 88732779
传真热线:0760-88306579 : 1分
浏览次数: 2856 剩余数量: 100 件
本站价 :¥1.00 优惠价 :¥1.00
数量 你的价格: 1.00
会员评级 评论星级 我要评级
详细信息 优惠信息 配送信息 售后服务




Corrosive Environment Pressure Transmitter
腐蚀环境压力变送器
Advantages General Description
􄤎Pressure transmitter for highly corrosive
environments
􄤎Extremely corrosion resistant ceramic
diaphragm (Al2 O3 96%)
􄤎Measuring ranges from 250mmH2O to
20kgf/cm2 relative or absolute pressure
􄤎Rugged piezoresistive or capacitive
ceramic measuring cell
􄤎Shock and vibration resistant
􄤎Wetted part and housing of teflon
Applications
This transmitter is specially designed for a
highly corrosive environmental condition
where stainless steel could not be applied
such as…
􄤎Process control and monitoring in
corrosive environment
􄤎Chemical and petrochemical industry
􄤎Corrosive liquid level measurement
􄤎Plating and dyeing process controls
P600 series pressure transmitter has been designed as
an advanced device for measuring pressure of corrosive
gases and liquids in industrial applications. It is extremely
versatile and suitable for measuring static pressure. The
built-in ceramic measuring cell is highly corrosion
resistant, stable and has an excellent price / performance
ratio. Thanks to their high natural frequency and the
rugged construction, the P600 transmitter withstands
high shock and vibration. The transmitters are available
as absolute and relative pressure types with either 2-wire
current or 3-wire voltage output. The pressure to be
measured acts without transmitting liquid on a stable,
corrosion resistant ceramic measuring cell. Piezoresistive
resistors are attached to the cell and connected into a
Wheatstone bridge configuration. The output signal of
this bridge is converted into a standardized current or
voltage output signal.

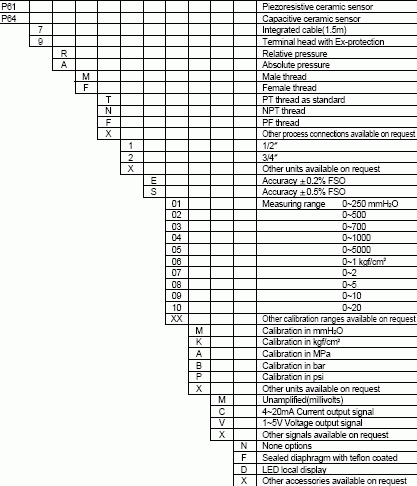

Model P617 / P619 P647 / P649
Technology Piezoresistive ceramic pressure sensor Capacitive ceramic pressure sensor
Pressure ranges 0~0.2 to 20kgf/cm2 relative 0~250mmH2O to 20kgf/cm2 relative
0~1 to 20kgf/cm2 absolute 0~0.2 to 20kgf/cm2 absolute
Overload 1.5 ×full scale without damage 6× full scale without damage
Current output Voltage output
Electrical connection type 2-wire technique 3 or 4-wire technique
Full scale output signal 20mA ±0.5% 5V ±0.5%
Zero measured output 4mA ±0.05% 1V ±0.05%
Other signals available on request
Excitation voltage 12~36V DC
Load resistance max@24V 500Ω at 24V
Influence of excitation 0.01% FSO/V
Power ripple ≤500mV P-P
Reverse polarity Protected
Shock resistance ≤20g
Response time 1.5ms 1ms
Adjustment ±10% FSO/zero and span ±20% FSO/zero and span
Accuracy ≤±0.5% FSO ≤±0.2% FSO
Linearity, Hysteresis & Repeatability ±0.2…0.4% FSO typical ±0.1…0.15% FSO typical
Stability ±0.3% FSO/a @25°C
Cutoff frequency(-3 d B) ≤2kHz
Reference temperature 25°C 25°C
Operating temperature range -40~125°C -40~125°C
Compensated temperature range 0~70°C -20~80°C
Thermal sensitivity shift ≤±0.015%/°C typical ≤±0.05% FSO typical
Thermal zero shift ≤±0.02% FSO/°C typical ≤±0.1% FSO typical
Long term stability ±0.3% FSO over 6 months Max. annual error 0.1%
Process connection PT1/2″male thread(standard)
PF1/2″male thread or manometer port
Other connections available on request
Process media Gases and liquids compatible with ceramic Al2 O3, 96%
Materials wetted by process Diaphragm : Ceramic Al2 O3, 96%
Housing : Teflon or aluminum die-casting
Gasket O-ring : Teflon or viton (HNBR, CSM, etc.)
Local display (P619,P649) LED 31/2 digit
Enclosure rating IP65
Influence of mounting position Not critical
Weight Approx.(950g)
Options Local display with terminal head
Explosion protection : Ex d IIC T6
Note : ① Cable version : 1.5m standard length, 4-wire, shielded with integral vent tube
② Vented gauge units must breathe dry, non - corrosive gases.
③ Connector version is vented through the removed pin, cable versions are vented through a vent tube inside
the cable sleeve
Input
Output
Electrical Specifications
Performance Specifications
Physical Specifications
