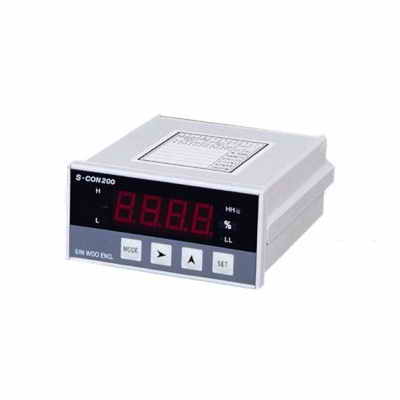

SCONI-2600带报警输出变送器/转换器ALARM SETTER
Features It can be accepts various input signal.. It is improved reliability by use of high resolution 16 bit A/D converter. It contains A, B contact in case of 2 point alarm which can be use of various purposes. It has burnout function which displays and outputs maximum value when sensor is open. It can be install isolated analog output and can be scale output.
Order information SCONI - 2600 - □ □ - □ Input type Output type Power supply Type Range Display mA DC 4 ~ 20mA MA 2Wire DC 24V/4 ~ A 20mA MA SQT DC 4 ~ 20mA MA V -10 ~ 10V VOLT mV -100 ~ 100mV MV R(PR13%) 0 ~ 1750℃ TCR K (CA) -200 ~ 1350℃ TCK E (CRC) -199.9 ~ 700.0℃ TCE J (IC) -199.9 ~ 800.0℃ TCJ B T (CC) -199.9 ~ 400.0℃ TCT Pt 100 -199.9 ~ 800.0℃ PT C JPt 100 -199.9 ~ 500.0℃ JPT PMC 0 ~ 100 ㏀ RES 1 2 Alarm (SPDT) 2 4 Alarm (SPST) 3 1 Alarm DC 0 ~ 10V 4 1 Alarm DC 1 ~ 5V 5 1 Alarm DC 4 ~ 20mA R Other Features It can be accepts various input signal.. It is improved reliability by use of high resolution 16 bit A/D converter. It contains A, B contact in case of 2 point alarm which can be use of various purposes. It has burnout function which displays and outputs maximum value when sensor is open. It can be install isolated analog output and can be scale output. X AC 110V/220V Y DC 24V A mA, 2Wire, SQT B mV, V, T/C C RTD, PMC
|
