This converter is used to supply power all types of transmitter used at the site and to output insulated signal by receiving the signal. With built-in noise removal filter, transfers correct signal, and precision isolation circuits enable perfect signal transfer not affected by withstand insulation voltage, transfer speed, noise, etc.

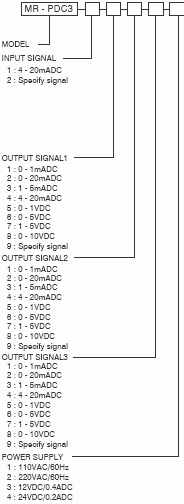

FEATURES Small size(mm) : 83(H), 51(W), 102(D). Isolation : input to output to power supply. Power supply : AC or DC supply. Wiring : terminal socket wiring. Case & color : black ABS plastic case. Weight : about 400g MR - PDC3 INPUT SIGNAL SPECIFICATION OUTPUT SIGNAL SPECIFICATION Output voltage signal : 12VDC max. Output voltage impedance : 2Kohm min. Output voltage noise : 10mV p-p max. Output current signal : 30mADC max. Output load resistance : 750ohm max. Output current noise(250ohm load) : 10mV p-p. GENERAL SPECIFICATION'S Operating ambient temperature : 0 - 50'C. Non operating ambient temperature : -20 ~ 80'C. Temperature coefficient : 0.015%/'C. Operating ambient humidity : 90% RH max.(non condensing) Insulation resistance : greater than 100Mohm with 500VDC. Dielectric strength : 1500VAC @ 1minute (input/out1/out2/power). Adjustment range : 15% (zero & span) min. Conversion accuracy : 0.2% max. Response time : 0 - 90%(0.5sec). OUTPUT IMPEDANCE OUTPUT LOAD - R 0 - 1VDC 0 - 5VDC 1 - 5VDC 0 - 10VDC 0 - 1mA 0 - 20mA 1 - 5mA 4 - 20mA > 1Kohm > 2Kohm > 2Kohm > 4Kohm < 15Kohm < 750ohm < 3Kohm < 750ohm Input current signal : 30mADC max. Input current load resistance : 100ohm max.(at 20mA) External power source : DC24V/30mA max. OUTPUT SIGNAL1 1 : 0 - 1mADC 2 : 0 - 20mADC 3 : 1 - 5mADC 4 : 4 - 20mADC 5 : 0 - 1VDC 6 : 0 - 5VDC 7 : 1 - 5VDC 8 : 0 - 10VDC 9 : Specify signal 3 OUTPUT ISOLATION POWER DISTRIBUTOR OUTPUT SIGNAL3 1 : 0 - 1mADC 2 : 0 - 20mADC 3 : 1 - 5mADC 4 : 4 - 20mADC 5 : 0 - 1VDC 6 : 0 - 5VDC 7 : 1 - 5VDC 8 : 0 - 10VDC 9 : Specify signal
|
