Technology Thin film pressure sensor
Pressure ranges 0~20 to 0~2,000kgf/cm2 gauge pressure
Pressure reference Gauge
Overload 5 × full scale without damage
Un-amplified 1.7, 2.0, 2.3m V/V (Maximum 10V)
Electrical connection type 2-wire technique 3-wire technique
Full scale output signal 20mA ±0.2% 5V ±0.2%
Zero measured output 4mA ±0.05% 1V ±0.05%
Other signals available on request
Excitation voltage 12~36V DC
Load resistance
max@24V 500Ω at 24V
Influence of excitation 0.01% FSO/V
Power ripple ≤500mV P-P
Reverse polarity Protected
Shock resistance ≤20g
Response time 1.5ms
Adjustment ±10% FSO/zero and span
Accuracy ≤±0.3% FSO
Linearity, Hysteresis & Repeatability ±0.2% FSO typical
Longterm stability ±0.1~0.25% FSO over 5years
Cutoff frequency(-3 d B) ≤2kHz
Service life Approx. 100,000,000cycles
Reference temperature 25°C
Operating temperature range -54~149°C
Compensated temperature range -18~82°C
Thermal sensitivity shift ≤±0.02%/°C typical
Thermal zero shift ≤±0.02% FSO/°C typical
Process connection PT1/4″, PT3/8″, PT1/2″male thread
PF1/4″, PF3/8″, PF1/2″male thread
Female thread & other connections available on request
Process media Gases and liquids compatible with stainless steel
Materials wetted by process Diaphragm : Stainless steel
Housing : Stainless steel 316
Enclosure rating IP65
Explosion protection Ex d IIC T6(P139)
Influence of mounting position Not critical
Weight Approx.(270g)
Options Sealed diaphragm with thread connection
Sealed diaphragm with flange mounting
Siphon tube
Sealed diaphragm with capillary

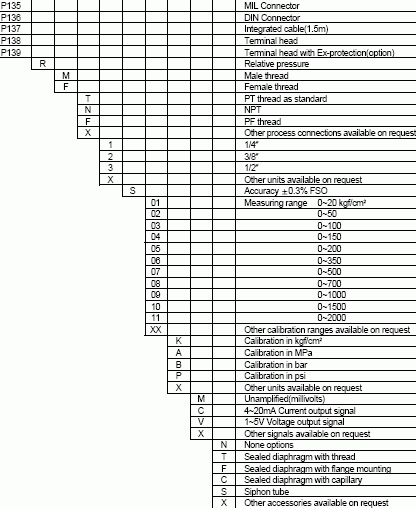

Note : ① P130 Series is only available with gauge pressure
② Cable version : 1.5m standard length, 4-wire, shielded with integral vent tube
③ Vented gauge units must breathe dry, non - corrosive gases.
④ Connector version is vented through the removed pin, cable versions are vented through a vent tube inside
the cable sleeve
Input
Output
Electrical Specifications
Performance Specifications
Physical Specifications
