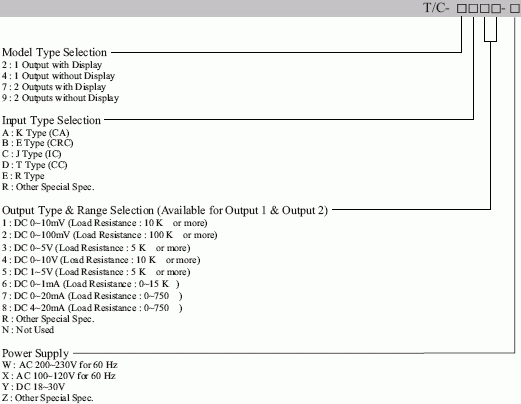

The Model T/C accepts standard thermocouples and provides isolated and linearized DC outputs. - Linearization and upscale burnout protection standard ; downscale or no burnout optional. ORDERING INFORMATION Specify code number and variables. Burnout is set to upscale. Specify when downscale or no burnout protection is required - Code no. : T/C-Model/Input/Output1/Output2-Power (Ex : T/C-4A8N-X) - Temperature Range (e.g. 0~800 C) - Special Output Range (Ex. 0~20mA) GENERAL SPECIFICATIONS - Housing Material : Plastic ABS(Resin) Black - Isolation : Input to Output to Power - Adjustment : Zero & Span(Separation) 10% of F.S - Burnout Protection : Upscale standard (Downscale option) - Display : 3 digits (-99 to 999) INSTALLATION - Power Supply : AC 100~120V or 200~230V / 60Hz (about 3VA), DC 18~30V (about 3Watts) - Operating Temperature : -5 ~ +55 C - Operating Humidity : 90% RH max. (Non-condensing) - Mounting : Wall or Rail mounting (Plug-in Type) - Dimension : 52(W) X 77(H) X 112(D) (Unit : mm) - Weight : about 400g PERFORMANCE - Accuracy : 0.1% LESS(F.S) at 23 C - Temperature Coefficient : 0.015% / C - Response Time : 0.5 Sec or less (0~90%), Normal - Insulation Resistance : 100 MW or more with 500V DC between Input / Output / Power - Dielectric Strength : 1500V AC 0.5 mA/Min (Input to Output to Power) - Display Range : -99 to 999 (Available Decimal Point, Unit : C) SCHEMATIC CIRCUIT & CONNECTION DIAGRAM
The Model T/C accepts standard thermocouples and provides isolated and linearized DC outputs.
|
