This is a converter to convert various types of frequency signal to DC signal. With filter circuits to remove signal noise, the SC-FDC executes correct signal transfer and is applied to a device to output pulse such volume, position control.

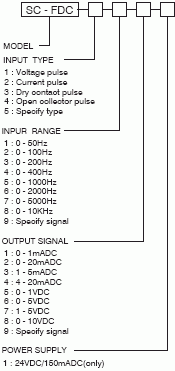

FEATURES Small size(mm) : 75(H), 22.5(W), 100(D). Isolation : input to output to power supply. Power supply : AC or DC supply. Wiring : terminal wiring. Case & color : gray Polyamide UL 94. V2. Weight : about 100g SC - FDC INPUT SIGNAL SPECIFICATION OUTPUT SIGNAL SPECIFICATION Output voltage signal : 12VDC max. Output voltage impedance : 2Kohm min. Output voltage noise : 10mV p-p max. Output current signal : 30mADC max. Output load resistance : 750ohm max. Output current noise(250ohm load) : 10mV p-p. GENERAL SPECIFICATION Operating ambient temperature : 0 - 50'C. Non operating ambient temperature : -20 ~ 80'C. Temperature coefficient : 0.02%/'C Operating ambient humidity : 90% RH max.(non condensing) Insulation resistance : greater than 100Mohm with 500VDC. Dielectric strength : 1500VAC @ 1minute (input to output to power). Adjustment range : 20% (zero & span) min. Conversion accuracy : 0.2% max. Response time : 0 - 90%(0.5sec). Linearity : 0.2% max. OUTPUT IMPEDANCE OUTPUT LOAD - R 0 - 1VDC 0 - 5VDC 1 - 5VDC 0-10VDC 0 - 1mA 0 - 20mA 1 - 5mA 4 - 20mA > 1Kohm > 2Kohm > 2Kohm > 4Kohm < 15Kohm < 750ohm < 3Kohm < 750ohm OUTPUT SIGNAL 1 : 0 - 1mADC 2 : 0 - 20mADC 3 : 1 - 5mADC 4 : 4 - 20mADC 5 : 0 - 1VDC 6 : 0 - 5VDC 7 : 1 - 5VDC 8 : 0 - 10VDC 9 : Specify signal INPUR RANGE 1 : 0 - 50Hz 2 : 0 - 100Hz 3 : 0 - 200Hz 4 : 0 - 400Hz 5 : 0 - 1000Hz 6 : 0 - 2000Hz 7 : 0 - 5000Hz 8 : 0 - 10KHz 9 : Specify signal Slim type FREQUENCY CONVERTER 1 : Voltage pulse 2 : Current pulse 3 : Dry contact pulse 4 : Open collector pulse 5 : Specify type Input signal : Frequency (pulse) Input type : volt pulse, current pulse, open collector pulse, dry contact pulse. Input range : 10KHz max. EXT Power : 12VDC max. This is a converter to convert various types of frequency signal to DC signal. With filter circuits to remove signal noise, the SC-FDC executes correct signal transfer and is applied to a device to output pulse such volume, position control.
|
